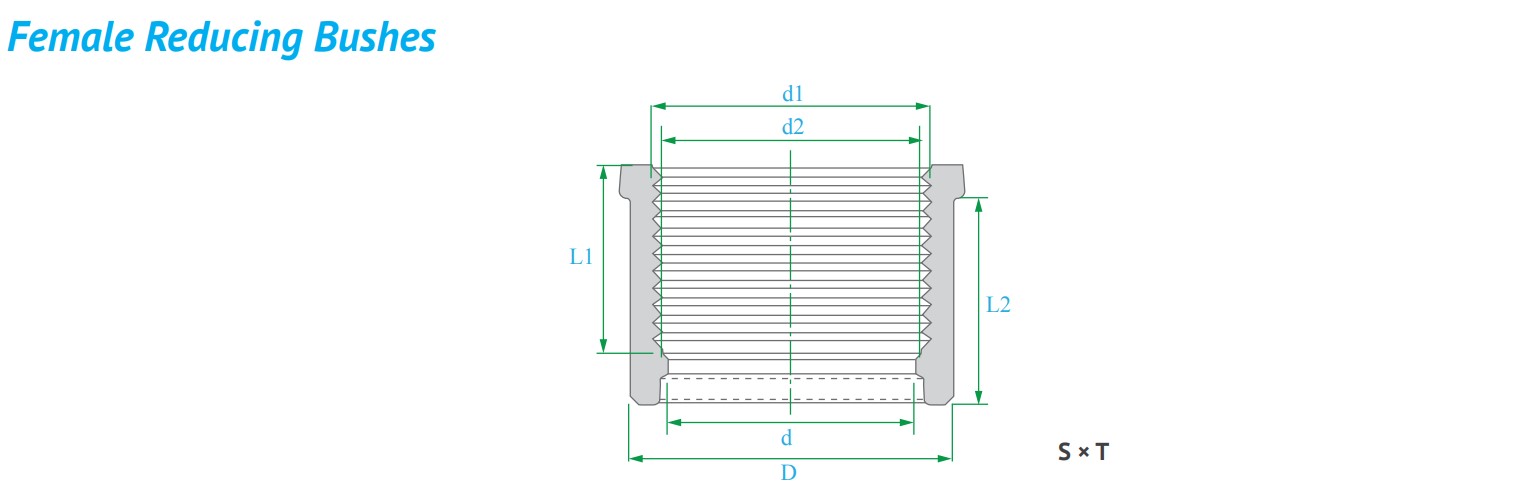

Female Reducing Bushes - CPVC Schedule 80
Please enter valid quantity.
Product Description
 |
| |
| PART |
NOMINAL SIZE |
REDUCER - S × T |
UNIT OF MEASURE: MM |
| |
|
D |
d |
d1 |
d2 |
L1 |
L2 |
APPROX. WT. |
| 0308.FRB.005002 |
1/2 > 3/8" |
21.34 |
17.00 |
- |
- |
14.00 |
- |
0.01 |
| 0308.FRB.005003 |
1/2 > 1/4" |
21.34 |
13.00 |
- |
- |
14.00 |
- |
0.01 |
| 0308.FRB.007502 |
3/4 > 1/4" |
26.67 |
13.00 |
- |
- |
17.00 |
- |
0.02 |
| 0308.FRB.007504 |
3/4" > 1/2" |
26.67 |
19.00 |
21.54 |
21.23 |
22.50 |
25.50 |
0.02 |
| 0308.FRB.010004 |
1 > 1/2" |
33.40 |
19.00 |
21.54 |
21.23 |
22.50 |
29.00 |
0.03 |
| 0308.FRB.010005 |
1 > 3/4" |
33.40 |
24.00 |
26.87 |
26.57 |
25.50 |
29.00 |
0.02 |
| 0308.FRB.012504 |
1 1/4 > 1/2" |
42.16 |
19.00 |
21.54 |
21.23 |
22.50 |
32.00 |
0.05 |
| 0308.FRB.012505 |
1 1/4 > 3/4" |
42.16 |
24.00 |
26.87 |
26.57 |
25.50 |
32.00 |
0.05 |
| 0308.FRB.012506 |
1 1/4 > 1" |
42.16 |
31.00 |
33.65 |
33.27 |
29.00 |
32.00 |
0.03 |
| 0308.FRB.015004 |
1 1/2 > 1/2" |
48.26 |
19.00 |
21.54 |
21.23 |
22.50 |
35.00 |
0.04 |
| 0308.FRB.015005 |
1 1/2 > 3/4" |
48.26 |
24.00 |
26.87 |
26.57 |
25.50 |
35.00 |
0.06 |
| 0308.FRB.015006 |
1 1/2 > 1" |
48.26 |
31.00 |
33.65 |
33.27 |
29.00 |
35.00 |
0.06 |
| 0308.FRB.015007 |
1 1/2 > 1 1/4" |
48.26 |
40.00 |
42.42 |
42.04 |
32.00 |
35.00 |
0.04 |
| 0308.FRB.020004 |
2 > 1/2" |
60.33 |
19.00 |
21.54 |
21.23 |
22.50 |
38.50 |
0.10 |
| 0308.FRB.020005 |
2 > 3/4" |
60.33 |
24.00 |
26.87 |
26.57 |
25.50 |
38.50 |
0.09 |
| 0308.FRB.020006 |
2 > 1" |
60.33 |
31.00 |
33.65 |
33.27 |
29.00 |
38.50 |
0.09 |
| 0308.FRB.020007 |
2 > 1 1/4" |
60.33 |
40.00 |
42.42 |
42.04 |
32.00 |
38.50 |
0.09 |
| 0308.FRB.020008 |
2 > 1 1/2" |
60.33 |
46.00 |
48.56 |
48.11 |
35.00 |
38.50 |
0.07 |
| 0308.FRB.030009 |
3 > 2" |
88.90 |
58.00 |
60.63 |
60.17 |
38.50 |
48.00 |
0.25 |
| 0308.FRB.040009 |
4 > 2" |
114.30 |
58.00 |
60.63 |
60.17 |
38.50 |
58.00 |
0.42 |
| 0308.FRB.040011 |
4 > 3" |
114.30 |
86.00 |
89.31 |
88.70 |
48.00 |
58.00 |
0.42 |
|
