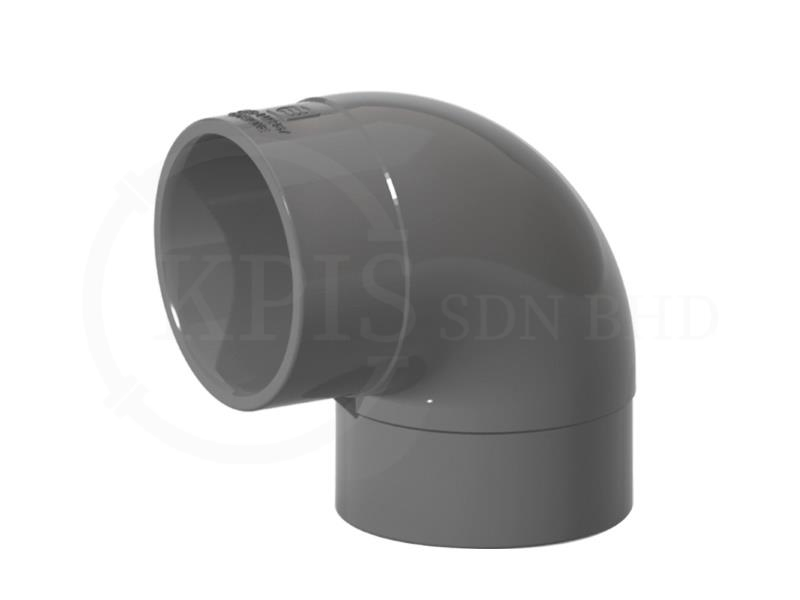

90° Elbows - CPVC Schedule 80

90° Elbows - CPVC Schedule 80

Product Description

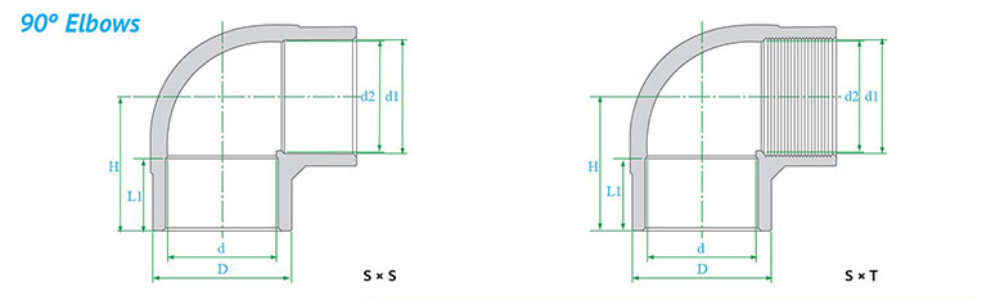

PART NOMINAL SIZE 90 ELL - S x S UNIT OF MEASURE: MM
    D d d1 d2 L1 H APPROX. WT.
0308.E90.0050 1/2" 29.50 19.00 21.54 21.23 22.50 35.00 0.03
0308.E90.0075 3/4" 35.00 24.00 26.87 26.57 25.50 40.00 0.05
0308.E90.0100 1" 43.00 31.00 33.65 33.27 29.00 47.50 0.08
0308.E90.0125 1 1/4" 52.50 40.00 42.42 42.04 32.00 55.00 0.13
0308.E90.0150 1 1/2" 59.00 46.00 48.56 48.11 35.00 62.00 0.17
0308.E90.0200 2" 72.00 58.00 60.63 60.17 38.50 71.50 0.26
0308.E90.0250 2 1/2" 87.50 70.00 73.38 72.85 44.50 83.50 0.45
0308.E90.0300 3" 105.00 86.00 89.31 88.70 48.00 95.00 0.70
0308.E90.0400 4" 132.00 110.00 114.76 114.07 57.50 117.50 1.17
0308.E90.0500 5" - - - - - - 1.94
0308.E90.0600 6" 193.00 164.00 168.83 168.00 77.00 167.00 3.03

PART NOMINAL SIZE 90 ELL - S x T UNIT OF MEASURE: MM
    D d d1 d2 L1 H APPROX. WT.
0308.FEP.0050 1/2" 29.50 19.00 21.54 21.23 22.50 35.00 0.03
0308.FEP.0075 3/4" 35.00 24.00 26.87 26.57 25.50 40.00 0.05
0308.FEP.0100 1" 43.00 31.00 33.65 33.27 29.00 47.50 0.08
0308.FEP.0125 1 1/4" 52.50 40.00 42.42 42.04 32.00 55.00 0.13
0308.FEP.0150 1 1/2" 59.00 46.00 48.56 48.11 35.00 62.00 0.17
0308.FEP.0200 2" 72.00 58.00 60.63 60.17 38.50 71.50 0.26
0308.FEP.0250 2 1/2" 87.50 70.00 73.38 72.85 44.50 83.50 0.45
0308.FEP.0300 3" 105.00 86.00 89.31 88.70 48.00 95.00 0.70
0308.FEP.0400 4" 134.00 110.00 114.76 114.07 57.50 117.50 1.17

Notes: Physical dimensions and tolerances meet the requirements of ASTM Standards F-439 for socket type fttings and F-437 for threaded fttings. CPVC material meets ASTM Standard D-1784. Dimensions are subject to change without notice.
