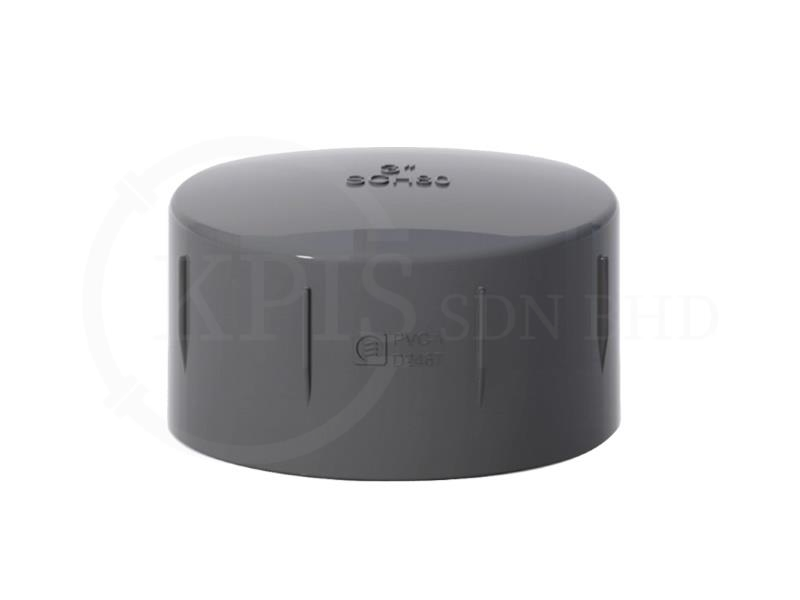

Caps - CPVC Schedule 80

Caps - CPVC Schedule 80

Product Description

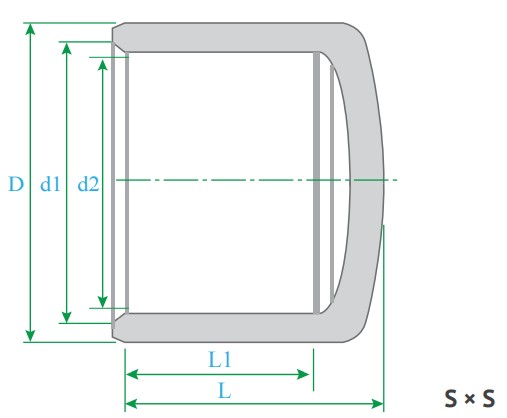

PART NOMINAL SIZE CAP - S × S UNIT OF MEASURE: MM
    D d1 d2 L1 L APPROX. WT.
0308.CAP.0050 1/2" 30.00 21.54 21.23 23.00 30.00 0.02
0308.CAP.0075 3/4" 35.00 26.87 26.57 26.00 34.00 0.02
0308.CAP.0100 1" 43.00 33.66 33.27 29.00 38.00 0.04
0308.CAP.0125 1 1/4" 53.00 - - 32.00 32.00 0.07
0308.CAP.0150 1 1/2" 60.00 48.56 48.11 35.00 46.00 0.09
0308.CAP.0200 2" 72.00 60.63 60.17 40.00 52.00 0.12
0308.CAP.0250 2 1/2" 88.00 73.38 72.85 44.50 50.00 0.18
0308.CAP.0300 3" 105.00 89.31 88.70 48.00 66.00 0.26
0308.CAP.0400 4" 134.00 114.76 114.07 57.50 76.00 0.45
0308.CAP.0600 6" 193.00 168.83 168.00 77.00 104.00 1.33
