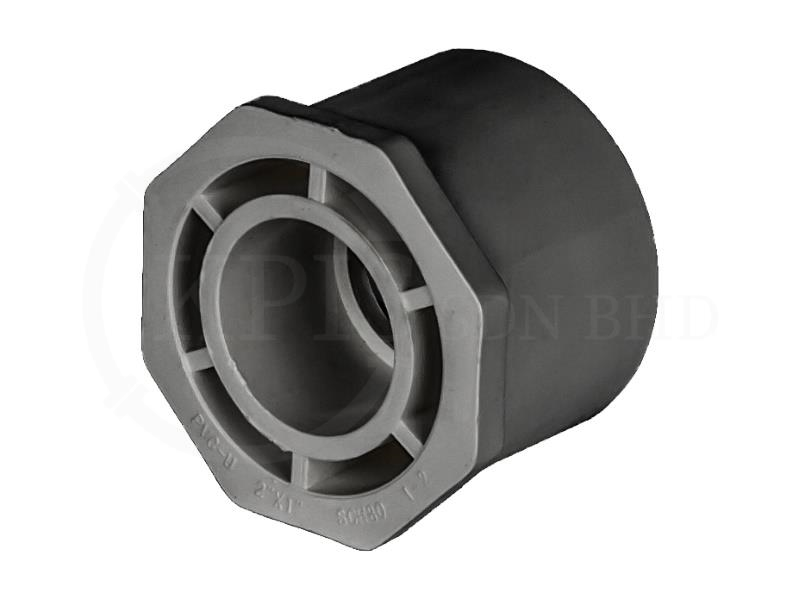

Reducing Bushes - PVC Schedule 80

Reducing Bushes - PVC Schedule 80

Product Description


PART NOMINAL SIZE REDUCER - S x S UNIT OF MEASURE: MM
    D d d1 d2 L1 L2 APPROX. WT.
0307.RBH.007504 3/4 > 1/2" 26.67 19.00 21.54 21.23 22.50 25.00 0.01
0307.RBH.010004 1 > 1/2" 33.40 19.00 21.54 21.23 22.50 29.00 0.03
0307.RBH.010005 1 > 3/4" 33.40 24.00 26.87 26.57 25.50 29.00 0.02
0307.RBH.012504 1 1/4 > 1/2" 42.16 19.00 21.54 21.23 22.50 32.00 0.05
0307.RBH.012505 1 1/4 > 3/4" 42.16 24.00 26.87 26.57 25.50 32.00 0.05
0307.RBH.012506 1 1/4 > 1" 42.16 31.00 33.65 33.27 29.00 32.00 0.03
0307.RBH.015004 1 1/2 > 1/2" 48.26 19.00 21.54 21.23 22.50 35.00 0.04
0307.RBH.015005 1 1/2 > 3/4" 48.26 24.00 26.87 26.57 25.50 35.00 0.06
0307.RBH.015006 1 1/2 > 1" 48.26 31.00 33.65 33.27 29.00 35.00 0.06
0307.RBH.015007 1 1/2 > 1 1/4" 48.26 40.00 42.42 42.04 32.00 35.00 0.04
0307.RBH.020004 2 > 1/2" 60.33 19.00 21.54 21.23 22.50 38.50 0.10
0307.RBH.020005 2 > 3/4" 60.33 24.00 26.87 26.57 25.50 38.50 0.09
0307.RBH.020006 2 > 1" 60.33 31.00 33.65 33.27 29.00 35.50 0.09
0307.RBH.020007 2  > 1 1/4" 60.33 40.00 42.42 42.04 32.00 38.50 0.09
0307.RBH.020008 2  > 1 1/2" 60.33 46.00 48.56 48.11 35.00 38.50 0.07
0307.RBH.025008 2 1/2  > 1 1/2" 73.03 46.00 48.56 48.11 35.00 44.50 0.17
0307.RBH.025009 2 1/2 > 2" 73.03 58.00 60.63 60.17 38.00 44.50 0.10
0307.RBH.030006 3 > 1" 88.90 31.00 33.65 33.27 29.00 48.00 0.24
0307.RBH.030008 3 > 1 1/2" 88.90 46.00 48.56 48.11 35.00 48.00 0.24
0307.RBH.030009 3 > 2" 88.90 58.00 60.63 60.17 38.50 48.00 0.25
0307.RBH.030010 3 > 2 1/2" 88.90 70.00 73.38 72.85 44.50 48.00 0.17
0307.RBH.040009 4 > 2" 114.30 58.00 60.63 60.17 38.50 58.00 0.42
0307.RBH.040010 4 > 2 1/2" 114.30 70.00 73.38 72.82 44.50 58.00 0.42
0307.RBH.040011 4 > 3" 114.30 86.00 89.31 88.70 48.00 58.00 0.35
0307.RBH.050012 5 > 4" 141.30 - - - - - 0.65
0307.RBH.060009 6 > 2" 168.28 58.00 60.63 60.17 38.50 77.00 1.20
0307.RBH.060011 6 > 3" 168.28 86.00 89.31 88.70 48.00 77.00 1.28
0307.RBH.060012 6 > 4" 168.28 110.00 114.76 114.07 58.00 77.00 1.30

Notes: Physical dimensions and tolerances meet the requirements of ASTM Standard D-2467. PVC material meets ASTM Standard D-1784. Dimensions are subject to change without notice.
