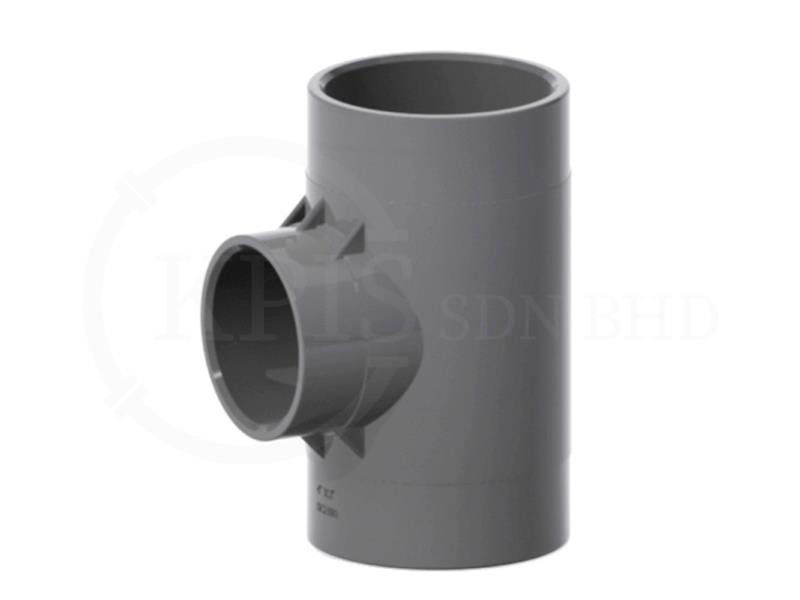

Reducing Tees - CPVC Schedule 80
Please enter valid quantity.
Product Description
 |
| |
| PART |
NOMINAL SIZE |

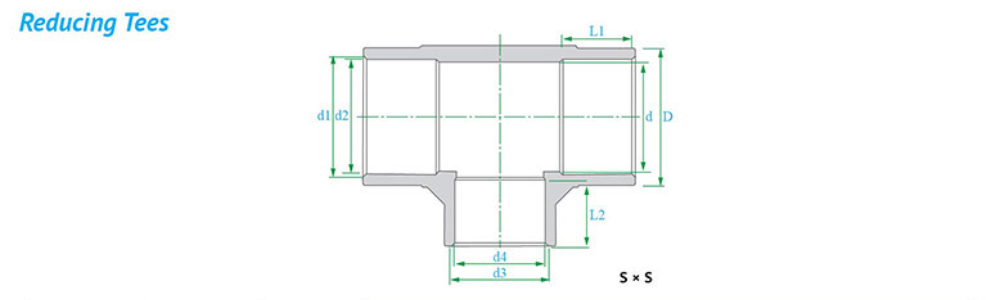

RED TEE - S x S |
UNIT OF MEASURE: MM |
| |
|
D |
d |
d1 |
d2 |
d3 |
d4 |
L1 |
L2 |
APPROX. WT. |
| 0308.RTE.007504 |
3/4 > 1/2" |
35.00 |
24.00 |
26.87 |
26.57 |
21.54 |
21.23 |
25.50 |
22.50 |
0.06 |
| 0308.RTE.010004 |
1 > 1/2" |
43.00 |
31.00 |
33.65 |
33.27 |
21.54 |
21.23 |
29.00 |
22.50 |
0.10 |
| 0308.RTE.010005 |
1 > 3/4" |
43.00 |
31.00 |
33.65 |
33.27 |
26.87 |
26.57 |
29.00 |
25.50 |
0.10 |
| 0308.RTE.012504 |
1 1/4 > 1/2" |
52.50 |
40.00 |
42.42 |
42.04 |
21.54 |
21.23 |
32.00 |
22.50 |
0.15 |
| 0308.RTE.012505 |
1 1/4 > 3/4" |
52.50 |
40.00 |
42.42 |
42.04 |
26.87 |
26.57 |
32.00 |
25.50 |
0.15 |
| 0308.RTE.012506 |
1 1/4 > 1" |
52.50 |
40.00 |
42.42 |
42.04 |
33.65 |
33.27 |
32.00 |
29.00 |
0.16 |
| 0308.RTE.015004 |
1 1/2 > 1/2" |
59.00 |
46.00 |
48.56 |
48.11 |
21.54 |
21.23 |
35.00 |
22.50 |
0.20 |
| 0308.RTE.015005 |
1 1/2 > 3/4" |
59.00 |
46.00 |
48.56 |
48.11 |
26.87 |
26.57 |
35.00 |
25.50 |
0.20 |
| 0308.RTE.015006 |
1 1/2 > 1" |
59.00 |
46.00 |
48.56 |
48.11 |
33.65 |
33.27 |
35.00 |
29.00 |
0.20 |
| 0308.RTE.015007 |
1 1/2 > 1 1/4" |
59.00 |
46.00 |
48.56 |
48.11 |
42.42 |
42.04 |
35.00 |
32.50 |
0.21 |
| 0308.RTE.020004 |
2 > 1/2" |
74.00 |
58.00 |
60.63 |
60.17 |
21.54 |
21.23 |
38.50 |
22.50 |
0.30 |
| 0308.RTE.020005 |
2 > 3/4" |
74.00 |
58.00 |
60.63 |
60.17 |
26.87 |
26.57 |
38.50 |
25.50 |
0.30 |
| 0308.RTE.020006 |
2 > 1" |
74.00 |
58.00 |
60.63 |
60.17 |
33.65 |
33.27 |
38.50 |
29.00 |
0.30 |
| 0308.RTE.020007 |
2 > 1 1/4" |
74.00 |
58.00 |
60.63 |
60.17 |
42.42 |
42.04 |
38.50 |
32.00 |
0.31 |
| 0308.RTE.020008 |
2 > 1 1/2" |
74.00 |
58.00 |
60.63 |
60.17 |
48.56 |
48.11 |
38.50 |
35.00 |
0.32 |
| 0308.RTE.025008 |
2 1/2 > 1 1/2" |
87.50 |
70.00 |
73.38 |
72.85 |
48.56 |
48.11 |
44.50 |
35.00 |
0.52 |
| 0308.RTE.025009 |
2 1/2 > 2" |
87.50 |
70.00 |
73.38 |
72.85 |
60.63 |
60.17 |
44.50 |
38.50 |
0.54 |
| 0308.RTE.030006 |
3 > 1" |
105.00 |
86.00 |
89.31 |
88.70 |
33.65 |
33.27 |
48.00 |
29.00 |
0.76 |
| 0308.RTE.030008 |
3 > 1 1/2" |
105.00 |
86.00 |
89.31 |
88.70 |
48.56 |
48.11 |
48.00 |
35.00 |
0.77 |
| 0308.RTE.030009 |
3 > 2" |
105.00 |
86.00 |
89.31 |
88.70 |
60.63 |
60.17 |
48.00 |
38.50 |
0.78 |
| 0308.RTE.030010 |
3 > 2 1/2" |
105.00 |
86.00 |
89.31 |
88.70 |
73.38 |
72.85 |
48.00 |
44.50 |
0.81 |
| 0308.RTE.040009 |
4 > 2" |
134.00 |
110.00 |
114.76 |
114.07 |
60.63 |
60.17 |
58.00 |
38.50 |
1.35 |
| 0308.RTE.040010 |
4 > 2 1/2" |
134.00 |
110.00 |
114.76 |
114.07 |
73.38 |
72.85 |
58.00 |
44.50 |
1.38 |
| 0308.RTE.040011 |
4 > 3" |
134.00 |
110.00 |
114.76 |
114.07 |
89.31 |
88.70 |
58.00 |
48.00 |
1.40 |
| 0308.RTE.060011 |
6 > 3" |
193.00 |
164.00 |
168.83 |
168.00 |
89.31 |
88.70 |
77.00 |
48.00 |
3.85 |
| 0308.RTE.060012 |
6 > 4" |
193.00 |
164.00 |
168.83 |
168.00 |
114.76 |
114.07 |
77.00 |
58.00 |
3.95 |
|
| |
| Notes: Physical dimensions and tolerances meet the requirements of ASTM Standards F-439 for socket type fttings and F-437 for threaded fttings. CPVC material meets ASTM Standard D-1784. Dimensions are subject to change without notice. |
