True Union Ball Check Valves - SHARKFELLOW
- Prevention of Backfow
- True Union Functionality
- Service-free Operation
- Corrosion-free
|
Please enter valid quantity.
Product Description
| CONSTRUCTION |
| NO |
PARTS |
PCS |
MATERIALS |
| 1 |
BODY |
1 |
PVC, CPVC, PVDF |
| 2 |
UNION NUT |
1 |
PVC, CPVC, PVDF |
| 3 |
UNION END |
1 |
PVC, CPVC, PVDF |
| 4 |
GLAND |
1 |
PVC, CPVC, PVDF |
| 5 |
BALL/CONE |
1 |
PVC, CPVC, PVDF |
| 6 |
O-RING |
1 |
EPDM, VITON |
| 7 |
SEAT |
1 |
EPDM, VITON |
| 8 |
O-RING |
2 |
EPDM, VITON |
| 9 |
O-RING |
2 |
EPDM, VITON |
| 10 |
SCREEN |
1 |
PVC, CPVC, PVDF |
|
| PART |
NOMINAL SIZE |
SOCKET, THREAD TYPE |
|
ASTM |
DIN |
JIS |
UNIT OF MEASURE: MM |
| |
|
DN |
d |
d1 |
L1 |
d1 |
L1 |
d1 |
L1 |
L |
D |
| SFES.0050 |
1/2” |
DN 15 |
14.0 |
21.34 |
22.6 |
20.0 |
17.0 |
22.0 |
22.6 |
125.0 |
56.0 |
| SFES.0075 |
3/4" |
DN 20 |
18.0 |
26.67 |
25.5 |
25.0 |
19.5 |
26.0 |
25.5 |
125.0 |
56.0 |
| SFES.0100 |
1" |
DN 25 |
24.0 |
33.4 |
28.6 |
32.0 |
23.0 |
32.0 |
28.6 |
141.0 |
66.0 |
| SFES.0125 |
1 1/4" |
DN 32 |
34.0 |
42.16 |
31.9 |
40.0 |
27.0 |
38.0 |
31.9 |
170.0 |
98.0 |
| SFES.0150 |
1 1/2" |
DN 40 |
39.0 |
48.26 |
35.1 |
50.0 |
32.0 |
48.0 |
35.1 |
170.0 |
98.0 |
| SFES.0200 |
2" |
DN 50 |
50.0 |
60.32 |
38.2 |
63.0 |
37.5 |
60.0 |
38.2 |
204.0 |
120.0 |
| SFES.0250 |
2 1/2" |
DN 65 |
50.0 |
73.02 |
41.4 |
75.0 |
41.5 |
76.0 |
41.4 |
210.0 |
120.0 |
| SFES.0300 |
3" |
DN 80 |
75.0 |
88.9 |
88.9 |
90.0 |
51.0 |
89.0 |
51.0 |
262.0 |
162.0 |
| SFES.0400 |
4" |
DN 100 |
100.0 |
114.3 |
57.5 |
110.0 |
61.0 |
114.0 |
61.0 |
315.0 |
220.0 |
|
| PART |
NOMINAL SIZE |
FOOT VALVE SCREEN |
| |
|
D |
L |
L1 |
| SFF.0050 |
1/2” |
42.0 |
80.0 |
50.0 |
| SFF.0075 |
3/4" |
42.0 |
80.0 |
50.0 |
| SFF.0100 |
1” |
52.5 |
94.0 |
60.0 |
| SFF.0125 |
1 1/4" |
75.0 |
103.0 |
63.0 |
| SFF.0150 |
1 1/2" |
75.0 |
117.0 |
77.0 |
| SFF.0200 |
2" |
95.0 |
123.0 |
78.0 |
| SFF.0250 |
2 1/2" |
- |
- |
- |
| SFF.0300 |
3" |
- |
- |
- |
| SFF.0400 |
4" |
- |
- |
- |
| SFF.0600 |
6" |
- |
- |
- |
|
| SELECTION CHART |
| SIZE |
MATERIAL |
CONNECTION |
SEALS |
PRESSURE RATING |
| 1/2” ~ 4” |
PVC
CPVC
PP |
SOCKET or THREAD |
EPDM or VITON |
200 PSI @ 73F Non-Shock |
|

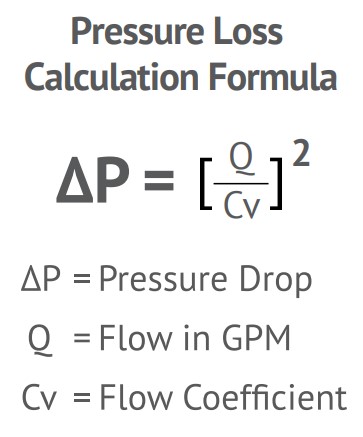

| CV FACTORS |
| SIZE |
FACTOR |
SIZE |
FACTOR |
| 1/4” |
- |
1 1/2” |
90 |
| 3/8” |
- |
2” |
140 |
| 1/2” |
8 |
2 1/2” |
- |
| 3/4” |
15 |
3” |
248 |
| 1” |
29 |
4” |
246 |
| 1 1/4” |
75 |
6” |
- |
|
| |
 |
|

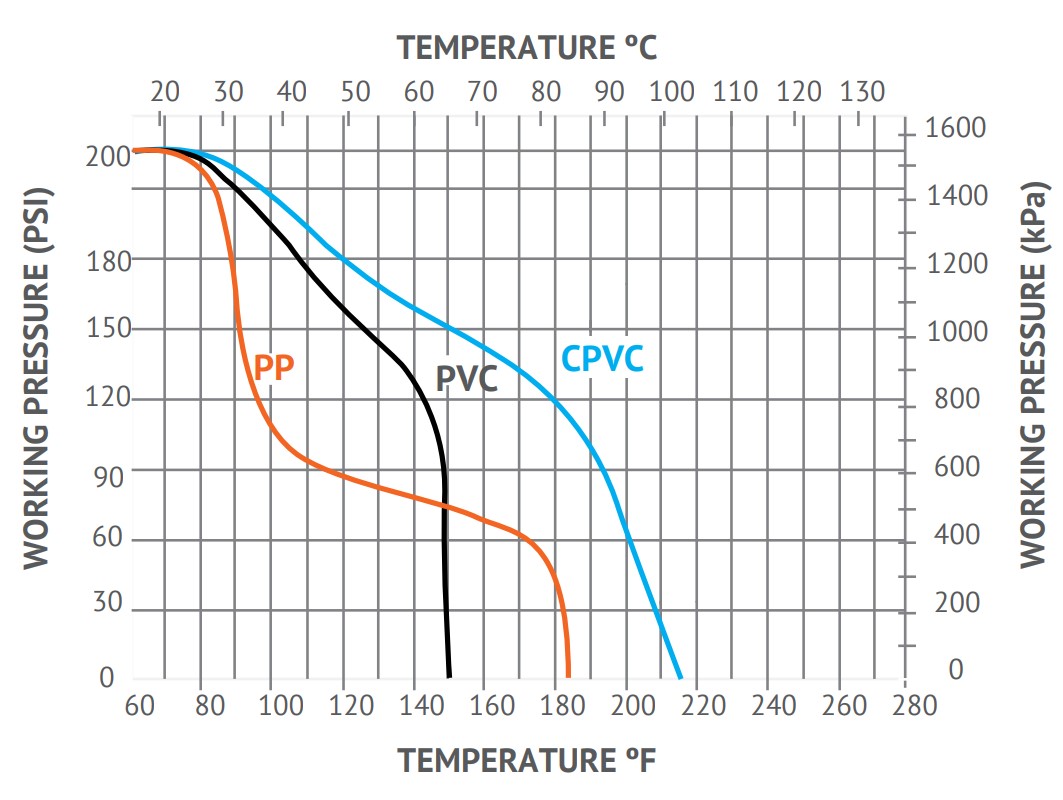

| OPERATING TEMPERATURE/PRESSURE |
 |
|
|
