True Union Ball Valves - KAPLAN

True Union Ball Valves - KAPLAN

  • Completely Re-engineered
  • Durability
  • True Union Functionality
  • Actuator Ready

Product Description


CONSTRUCTION
NO PARTS PCS MATERIALS
1 HANDLE CAP 1 ABS
2 HANDLE 1 ABS
3 STEM 1 PVC, CPVC, PP
4 O-RING 2 EPDM, VITON
5 NUT 2 PVC, CPVC, PP
6 CONNECTOR 2 PVC, CPVC, PP
7 INSERT 1 PVC, CPVC, PP
8 BODY 1 PVC, CPVC, PP
9 O-RING 1 EPDM, VITON
10 O-RING 2 EPDM, VITON
11 BALL 1 PVC, CPVC, PP
12 SEAT 2 PTFE
13 O-RING 2 EPDM, VITON

PART NOMINAL SIZE SOCKET, THREAD TYPE UNIT OF MEASURE: MM ASTM DIN JIS
    DN D D1 d H1 L L1 de l de l de l W
KPES.0050 1/2” DN 15 46.0 32.0 13.0 49.0 116.0 62.0 21.3 22.6 20.0 17.0 22.0 22.6 45.0
KPES.0075 3/4” DN 20 56.0 38.0 19.0 60.0 133.0 72.0 26.7 25.5 25.0 19.5 26.0 25.5 52.0
KPES.0100 1” DN 25 66.0 45.0 25.0 69.0 150.0 80.0 33.4 28.6 32.0 23.0 32.0 28.6 58.0
KPES.0125 1 1/4” DN 32 82.0 55.0 31.0 76.0 168.0 87.0 42.2 31.9 40.0 27.0 38.0 31.9 66.0
KPES.0150 1 1/2” DN 40 98.0 67.0 40.0 91.0 173.0 94.0 48.3 35.1 50.0 32.0 48.0 35.1 69.0
KPES.0200 2” DN 50 120.0 81.0 50.0 110.0 206.0 112.0 60.3 38.2 63.0 37.5 60.0 38.2 81.0
KPES.0250 2 1/2” DN 65 120.0 89.0 50.0 110.0 211.0 112.0 73.0 41.4 75.0 41.5 76.0 41.4 81.0
KPES.0300 3” DN 80 162.0 108.0 75.0 140.0 262.0 147.0 88.9 48.0 90.0 51.0 89.0 51.0 118.0
KPES.0400 4” DN 100 220.0 134.0 100.0 185.0 311.0 177.0 114.3 57.5 110.0 61.0 114.0 61.0 140.0

SELECTION CHART
SIZE MATERIAL CONNECTION SEALS PRESSURE RATING
1/2” ~ 4” PVC
CPVC
PP		 SOCKET or THREAD EPDM or VITON 200 PSI @ 73F Non-Shock

CV FACTORS
SIZE FACTOR SIZE FACTOR
1/4” - 1 1/2” 90
3/8” - 2” 140
1/2” 8 2 1/2” 330
3/4” 15 3” 480
1” 29 4” 600
1 1/4” 75 6” -

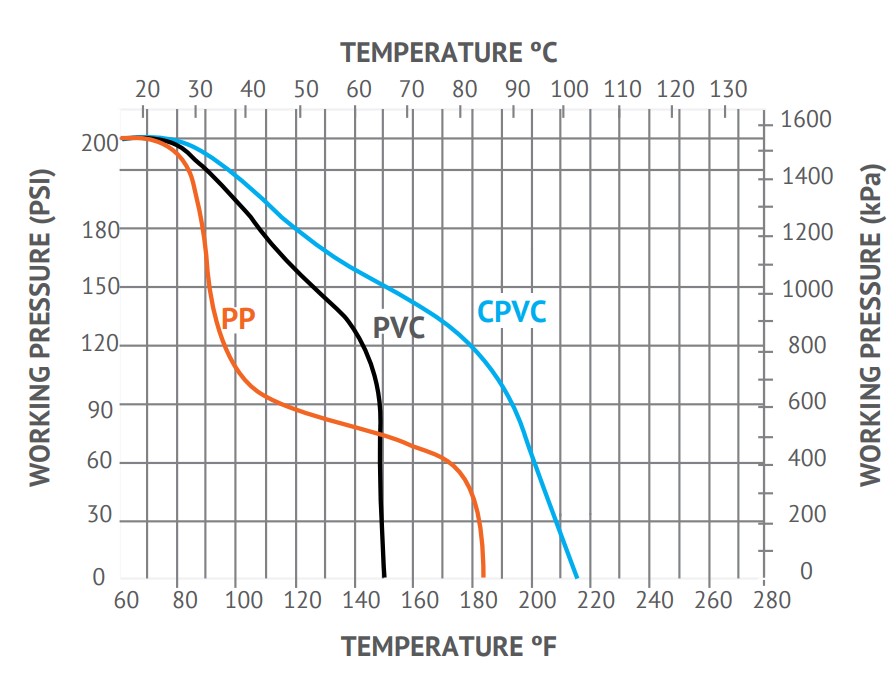

OPERATING TEMPERATURE/PRESSURE
