- Economical Protection
- Easy Clean Out
- Rugged Plastic Screens
- Adaptable Design
- All Plastic Construction
|
Please enter valid quantity.
Product Description
| CONSTRUCTION |
| NO |
PARTS |
PCS |
MATERIALS |
| 1 |
BODY |
1 |
PVC, CPVC, PP, PVDF |
| 2 |
CAP |
1 |
PVC, CPVC, PP, PVDF |
| 3 |
SCREEN |
1 |
PP, SUS316 |
| 4 |
IDENTIFIER |
1 |
ABS |
| 5 |
O-RING |
1 |
EPDM, VITON |
| 6 |
UNION NUT |
2 |
PVC, CPVC, PP, PVDF |
| 7 |
CONNECTOR |
2 |
PVC, CPVC, PP, PVDF |
| 8 |
O-RING |
2 |
EPDM, VITON |
| 9 |
WRENCH |
1 |
ABS |
|
| PART |
NOMINAL SIZE |
SOCKET, THREAD TYPE |
|
ASTM |
DIN |
JIS |
UNIT OF MEASURE: MM |
| |
|
DN |
D |
L1 |
L |
d |
d |
d |
H1 |
H2 |
| KYES.0050 |
1/2” |
DN 15 |
56.0 |
110.0 |
172.0 |
21.5 |
20.3 |
22.3 |
85.0 |
130.0 |
| KYES.0075 |
3/4" |
DN 20 |
56.0 |
110.0 |
172.0 |
26.9 |
25.3 |
26.3 |
85.0 |
130.0 |
| KYES.0100 |
1" |
DN 25 |
66.0 |
126.0 |
197.0 |
33.7 |
32.3 |
32.3 |
92.0 |
150.0 |
| KYES.0125 |
1 1/4" |
DN 32 |
98.0 |
173.0 |
254.0 |
42.4 |
40.3 |
38.4 |
122.0 |
205.0 |
| KYES.0150 |
1 1/2" |
DN 40 |
98.0 |
173.0 |
254.0 |
48.6 |
50.3 |
48.5 |
122.0 |
205.0 |
| KYES.0200 |
2" |
DN 50 |
120.0 |
204.0 |
297.0 |
60.6 |
63.3 |
60.6 |
141.0 |
230.0 |
| KYES.0250 |
2 1/2" |
DN 65 |
- |
- |
- |
73.8 |
75.3 |
76.6 |
- |
- |
| KYES.0300 |
3" |
DN 80 |
- |
- |
- |
89.3 |
90.3 |
89.6 |
- |
- |
| KYES.0400 |
4" |
DN 100 |
- |
- |
- |
114.8 |
110.3 |
114.7 |
- |
- |
|
| SELECTION CHART |
| SIZE |
MATERIAL |
CONNECTION |
SEALS |
PRESSURE RATING |
| 1/2” ~ 4” |
PVC
CPVC
PP,
PVDF |
SOCKET or THREAD |
EPDM or VITON |
150 PSI @ 73F Non-Shock |
|
| CV FACTORS |
| SIZE |
FACTOR |
SIZE |
FACTOR |
| 1/2” |
3 |
2" |
30 |
| 3/4” |
5 |
2 1/2" |
- |
| 1” |
7 |
3" |
- |
| 1 1/4” |
15 |
4” |
- |
| 1 1/2” |
20 |
6” |
- |
|
| |
 |
|

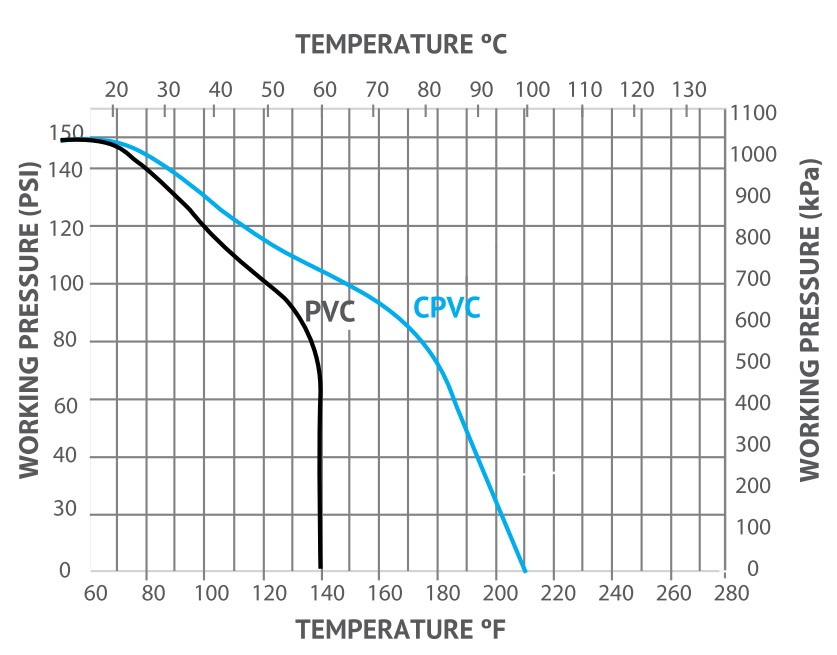

| OPERATING TEMPERATURE/PRESSURE |
 |
|
|
