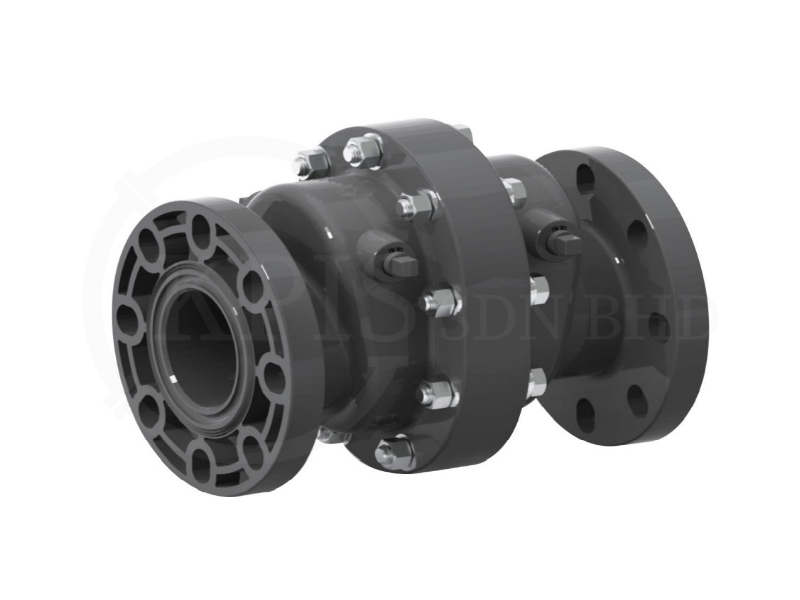

Swing Check Valves - SIMPLEX WTF ™ Series

Swing Check Valves - SIMPLEX WTF ™ Series

  • Prevention of Backfow
  • Cost-effective Simplicity
  • Advanced Features
  • Corrosion-free

Product Description

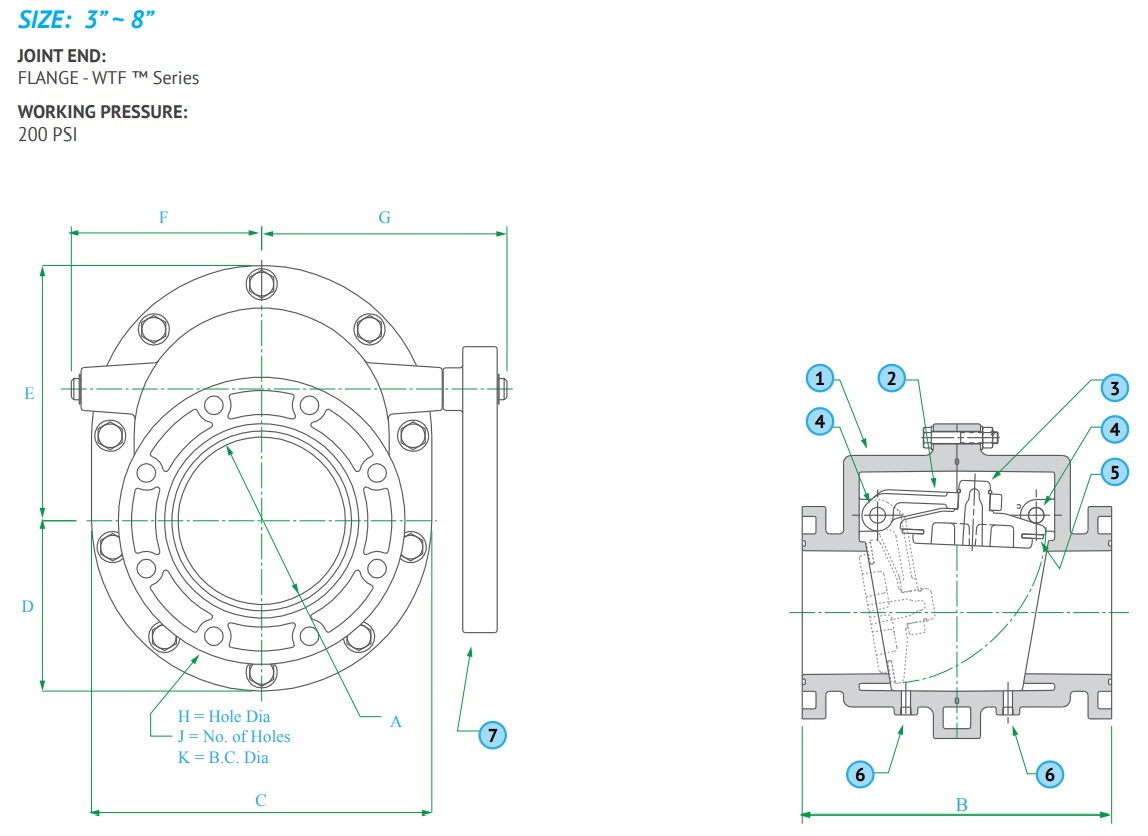

CONSTRUCTION
NO PARTS PCS MATERIALS
1 HOUSING 1 PVC, CPVC, PP, PVDF
2 SWING ARM 1 PVC, CPVC, PP, PVDF
3 CLAPPER 1 PVC, CPVC, PP, PVDF
4 SHAFT 1 PVC, CPVC, SS316
5 SEAL 1 EPDM, VITON
6 DISCHARGE PORT 2 PVC, CPVC
7 COUNTER WEIGHT [OPTIONAL] 1 PVC, CPVC, PP, PVDF

PART NOMINAL SIZE FLANGED - WTF ™ Series UNIT OF MEASURE: MM
    DN A B C D E F G H J K
SIEF.0300 3” DN 80 76.0 260.0 191.0 95.0 132.0 99.0 125.0 19.0 8.0 23.5
SIEF.0400 4” DN 100 99.0 300.0 235.0 118.0 171.0 122.0 156.0 19.0 8.0 24.5
SIEF.0600 6” DN 150 150.0 400.0 324.0 162.0 235.0 164.0 211.0 24.0 8.0 24.0

SELECTION CHART
SIZE MATERIAL CONNECTION SEALS PRESSURE RATING
3” ~ 6” PVC
CPVC
PP		 WTF ™ Series FLANGED EPDM or VITON 200 PSI @ 73F Non-Shock

CV FACTORS
SIZE FACTOR SIZE FACTOR
3” 480 6” 800
4” 600 8” 1000

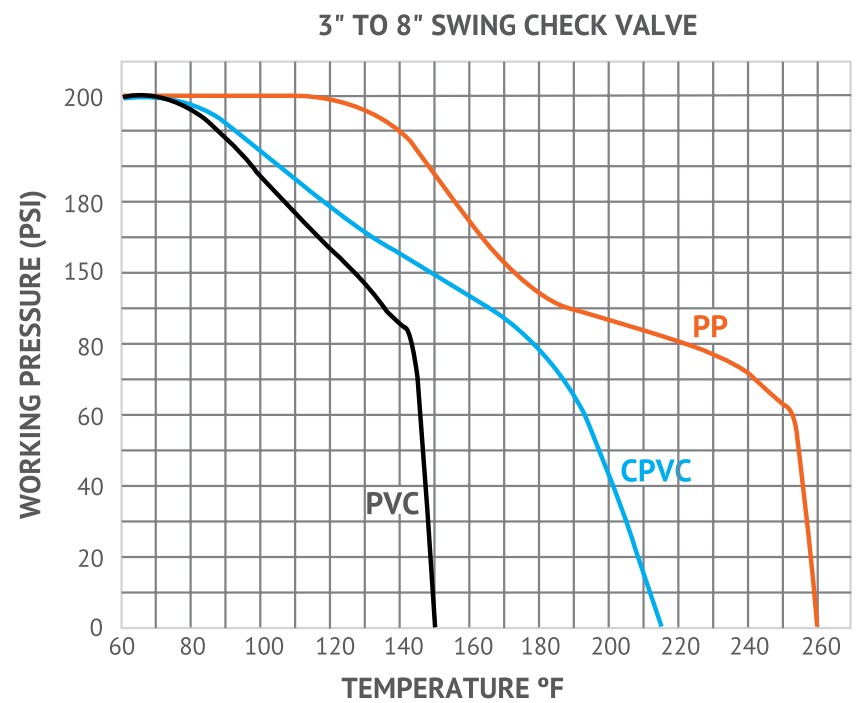

OPERATING TEMPERATURE/PRESSURE
