  • Prevention of Backfow
  • True Union Functionality
  • Service-free Operation
  • Corrosion-free

Product Description

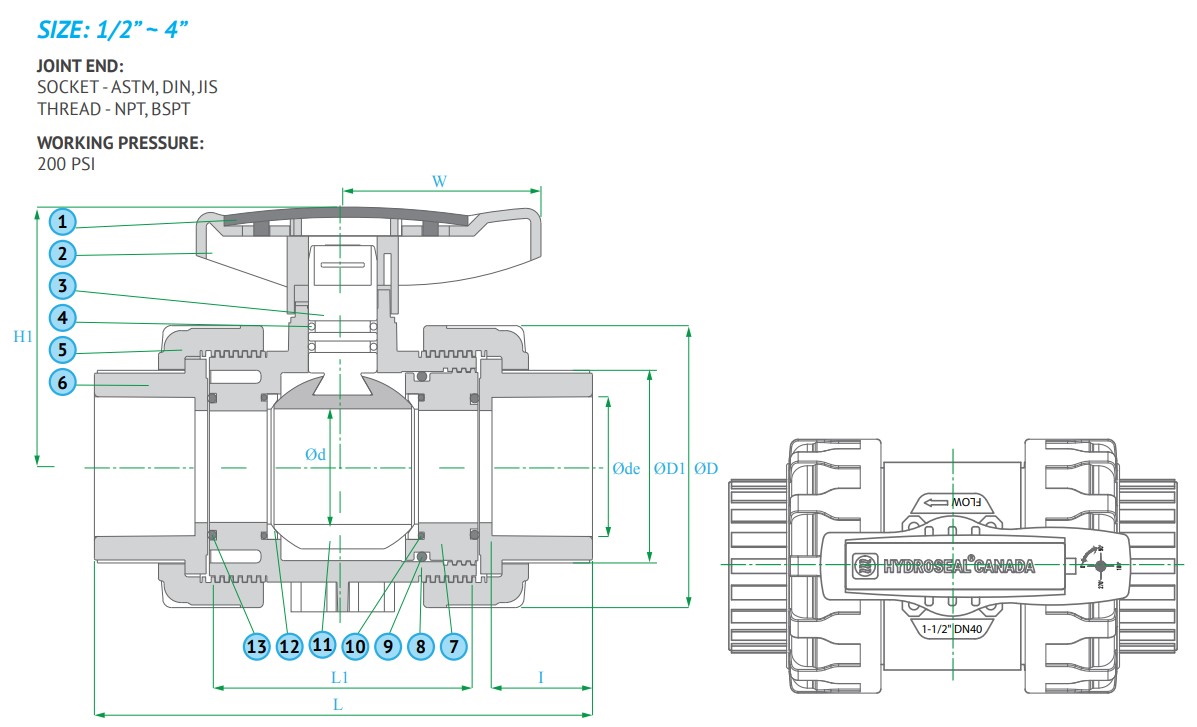

CONSTRUCTION
NO PARTS PCS MATERIALS
1 BODY 1 PVC, CPVC, PVDF
2 UNION NUT 1 PVC, CPVC, PVDF
3 UNION END 1 PVC, CPVC, PVDF
4 GLAND 1 PVC, CPVC, PVDF
5 BALL/CONE 1 PVC, CPVC, PVDF
6 O-RING 1 EPDM, VITON
7 SEAT 1 EPDM, VITON
8 O-RING 2 EPDM, VITON
9 O-RING 2 EPDM, VITON
10 SCREEN 1 PVC, CPVC, PVDF

PART NOMINAL SIZE SOCKET, THREAD TYPE   ASTM DIN JIS UNIT OF MEASURE: MM
    DN d d1 L1 d1 L1 d1 L1 L D
SFES.0050 1/2” DN 15 14.0 21.34 22.6 20.0 17.0 22.0 22.6 125.0 56.0
SFES.0075 3/4" DN 20 18.0 26.67 25.5 25.0 19.5 26.0 25.5 125.0 56.0
SFES.0100 1" DN 25 24.0 33.4 28.6 32.0 23.0 32.0 28.6 141.0 66.0
SFES.0125 1 1/4" DN 32 34.0 42.16 31.9 40.0 27.0 38.0 31.9 170.0 98.0
SFES.0150 1 1/2" DN 40 39.0 48.26 35.1 50.0 32.0 48.0 35.1 170.0 98.0
SFES.0200 2" DN 50 50.0 60.32 38.2 63.0 37.5 60.0 38.2 204.0 120.0
SFES.0250 2 1/2" DN 65 50.0 73.02 41.4 75.0 41.5 76.0 41.4 210.0 120.0
SFES.0300 3" DN 80 75.0 88.9 88.9 90.0 51.0 89.0 51.0 262.0 162.0
SFES.0400 4" DN 100 100.0 114.3 57.5 110.0 61.0 114.0 61.0 315.0 220.0

PART NOMINAL SIZE FOOT VALVE SCREEN
    D L L1
SFF.0050 1/2” 42.0 80.0 50.0
SFF.0075 3/4" 42.0 80.0 50.0
SFF.0100 1” 52.5 94.0 60.0
SFF.0125 1 1/4" 75.0 103.0 63.0
SFF.0150 1 1/2" 75.0 117.0 77.0
SFF.0200 2" 95.0 123.0 78.0
SFF.0250 2 1/2" - - -
SFF.0300 3" - - -
SFF.0400 4" - - -
SFF.0600 6" - - -

SELECTION CHART
SIZE MATERIAL CONNECTION SEALS PRESSURE RATING
1/2” ~ 4” PVC
CPVC
PP		 SOCKET or THREAD EPDM or VITON 200 PSI @ 73F Non-Shock

CV FACTORS
SIZE FACTOR SIZE FACTOR
1/4” - 1 1/2” 90
3/8” - 2” 140
1/2” 8 2 1/2” -
3/4” 15 3” 248
1” 29 4” 246
1 1/4” 75 6” -


OPERATING TEMPERATURE/PRESSURE
