Y Strainers - KIYO

Y Strainers - KIYO

  • Economical Protection
  • Easy Clean Out
  • Rugged Plastic Screens
  • Adaptable Design
  • All Plastic Construction

Product Description

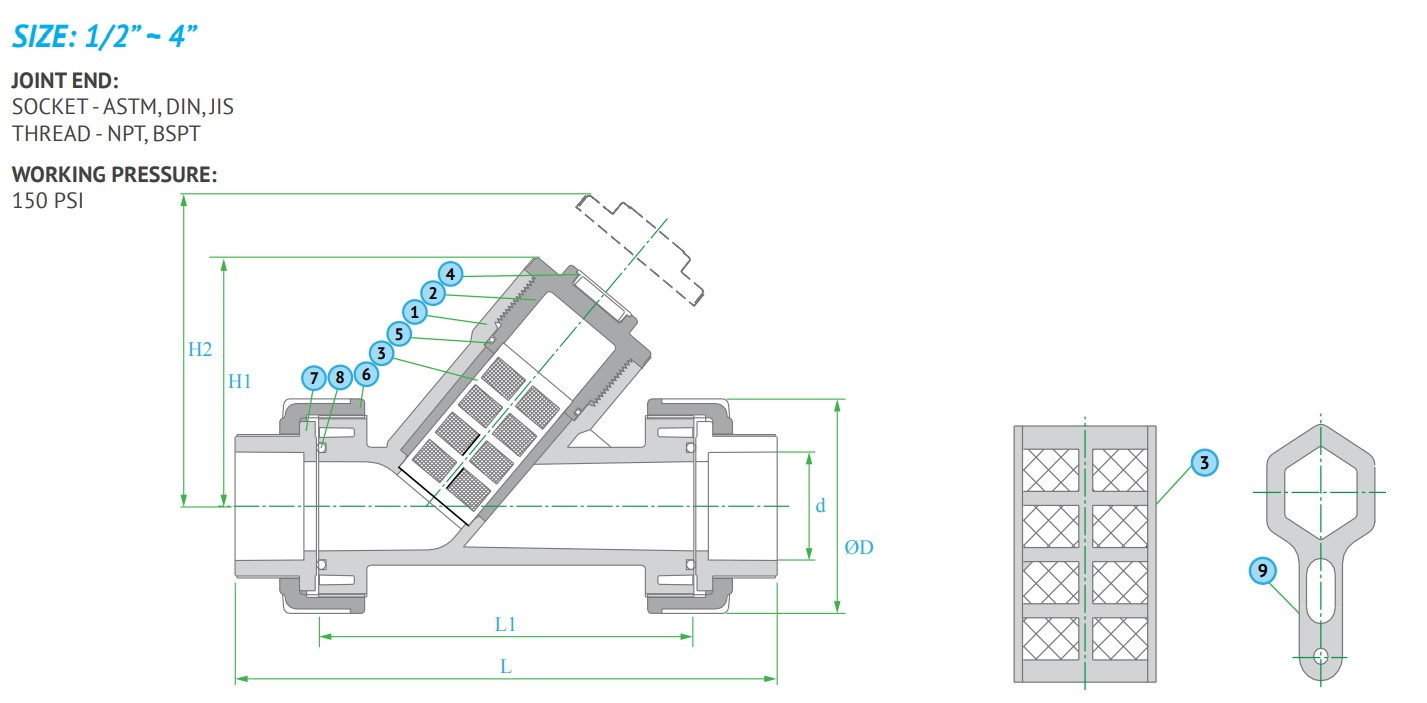

CONSTRUCTION
NO PARTS PCS MATERIALS
1 BODY 1 PVC, CPVC, PP, PVDF
2 CAP 1 PVC, CPVC, PP, PVDF
3 SCREEN 1 PP, SUS316
4 IDENTIFIER 1 ABS
5 O-RING 1 EPDM, VITON
6 UNION NUT 2 PVC, CPVC, PP, PVDF
7 CONNECTOR 2 PVC, CPVC, PP, PVDF
8 O-RING 2 EPDM, VITON
9 WRENCH 1 ABS

PART NOMINAL SIZE SOCKET, THREAD TYPE   ASTM DIN JIS UNIT OF MEASURE: MM
    DN D L1 L d d d H1 H2
KYES.0050 1/2” DN 15 56.0 110.0 172.0 21.5 20.3 22.3 85.0 130.0
KYES.0075 3/4" DN 20 56.0 110.0 172.0 26.9 25.3 26.3 85.0 130.0
KYES.0100 1" DN 25 66.0 126.0 197.0 33.7 32.3 32.3 92.0 150.0
KYES.0125 1 1/4" DN 32 98.0 173.0 254.0 42.4 40.3 38.4 122.0 205.0
KYES.0150 1 1/2" DN 40 98.0 173.0 254.0 48.6 50.3 48.5 122.0 205.0
KYES.0200 2" DN 50 120.0 204.0 297.0 60.6 63.3 60.6 141.0 230.0
KYES.0250 2 1/2" DN 65 - - - 73.8 75.3 76.6 - -
KYES.0300 3" DN 80 - - - 89.3 90.3 89.6 - -
KYES.0400 4" DN 100 - - - 114.8 110.3 114.7 - -

SELECTION CHART
SIZE MATERIAL CONNECTION SEALS PRESSURE RATING
1/2” ~ 4” PVC
CPVC
PP,
PVDF		 SOCKET or THREAD EPDM or VITON 150 PSI @ 73F Non-Shock

CV FACTORS
SIZE FACTOR SIZE FACTOR
1/2” 3 2" 30
3/4” 5 2 1/2" -
1” 7 3" -
1 1/4” 15 4” -
1 1/2” 20 6” -


OPERATING TEMPERATURE/PRESSURE
