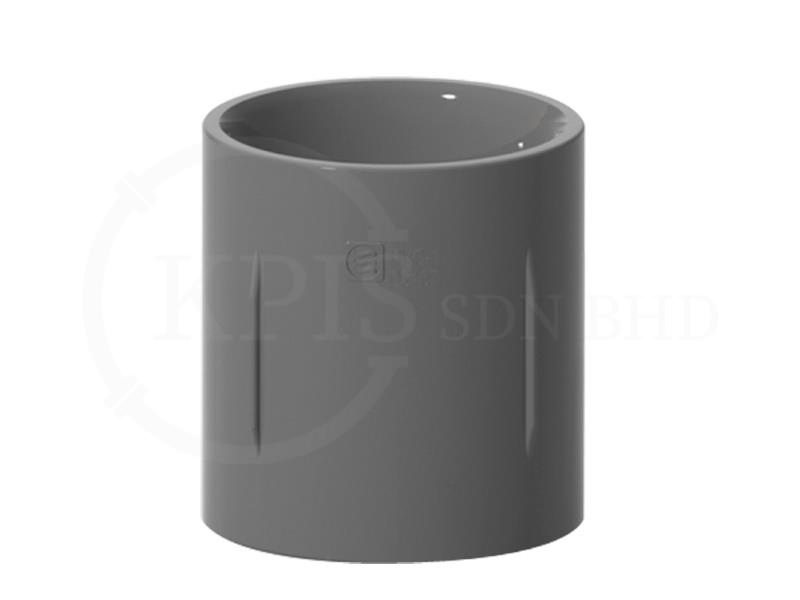

Couplings - CPVC Schedule 80

Product Description

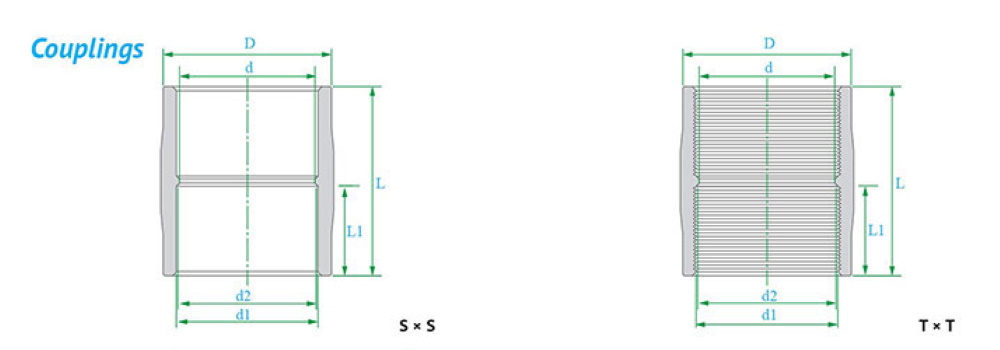

PART	NOMINAL SIZE	COUPLING - S x S	UNIT OF MEASURE: MM
		D	d	d1	d2	L1	L	APPROX. WT.
0308.SCT.0050	1/2"	29.50	19.00	21.54	21.23	22.50	48.00	0.02
0308.SCT.0075	3/4"	35.00	24.00	26.87	26.57	25.50	54.00	0.03
0308.SCT.0100	1"	43.00	31.00	33.65	33.27	29.00	61.00	0.05
0308.SCT.0125	1 1/4"	52.50	40.00	42.42	42.04	32.00	68.00	0.08
0308.SCT.0150	1 1/2"	59.0	46.00	48.56	48.11	35.00	74.00	0.10
0308.SCT.0200	2"	72.0	58.00	60.63	60.17	38.50	81.00	0.14
0308.SCT.0250	2 1/2"	87.5	70.00	73.38	72.85	44.50	93.00	0.26
0308.SCT.0300	3"	105.0	86.00	89.31	88.70	48.00	100.00	0.38
0308.SCT.0400	4"	132.0	110.00	114.76	114.07	57.50	120.00	0.58
0308.SCT.0500	5"	-	-	-	-	-	-	1.06
0308.SCT.0600	6"	193.0	164.00	168.83	168.00	77.00	162.00	1.62

PART	NOMINAL SIZE	COUPLING - T x T	UNIT OF MEASURE: MM
		D	d	d1	d2	L1	L	APPROX. WT.
N/A	1/2"	29.50	19.00	21.54	21.23	22.50	35.00	0.02
N/A	3/4"	35.00	24.00	26.87	26.57	25.50	40.00	0.03
N/A	1"	43.00	31.00	33.65	33.27	29.00	47.50	0.05
N/A	1 1/4"	52.50	40.00	42.42	42.04	32.00	55.00	0.08
N/A	1 1/2"	59.00	46.00	48.56	48.11	35.00	62.00	0.10
N/A	2"	72.00	58.00	60.63	60.17	38.50	71.50	0.14
N/A	2 1/2"	87.50	70.00	73.38	72.85	44.50	83.50	0.26
N/A	3"	105.00	86.00	89.31	88.70	48.00	95.00	0.38
N/A	4"	132.00	110.00	114.76	114.07	57.50	117.50	0.58

Notes: Physical dimensions and tolerances meet the requirements of ASTM Standards F-439 for socket type fttings and F-437 for threaded fttings. CPVC material meets ASTM Standard D-1784. Dimensions are subject to change without notice.
