Male Adaptors - CPVC Schedule 80

Male Adaptors - CPVC Schedule 80

Product Description

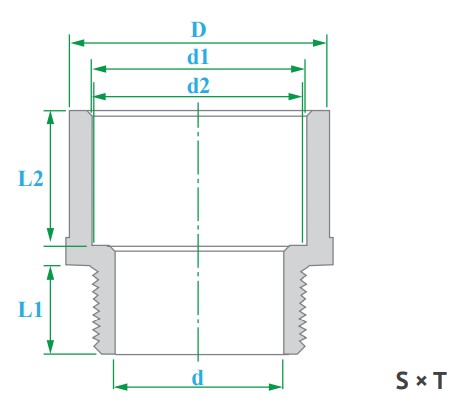

PART NOMINAL SIZE ADAPTOR - S × T UNIT OF MEASURE: MM
    D d d1 d2 L1 L2 APPROX. WT.
0308.MAP.0050 1/2" 29.50 15.00 21.54 21.23 22.50 18.00 0.02
0308.MAP.0075 3/4" 35.00 20.00 26.87 26.57 25.50 18.00 0.03
0308.MAP.0100 1" 43.00 25.00 33.65 33.27 29.00 20.00 0.04
0308.MAP.0125 1 1/4" 52.50 32.00 42.42 42.04 32.00 22.00 0.07
0308.MAP.0150 1 1/2" 59.00 38.00 48.56 48.11 35.00 22.00 0.09
0308.MAP.0200 2" 72.00 48.00 60.63 60.17 38.50 25.00 0.12
0308.MAP.0250 2 1/2" 87.50 60.00 73.38 72.85 44.50 32.00 0.24
0308.MAP.0300 3" 105.00 75.00 89.31 88.70 48.00 33.00 0.32
0308.MAP.0400 4" 132.00 100.00 114.76 114.07 57.50 36.00 0.55
